Experimental interpretation

The magnetics IDS is the backbone of every VEST analysis: it feeds the equilibrium reconstruction, the eddy-current model, and all of the fluctuation diagnostics. This page shows what the IDS holds, how VAFT builds it from raw DAQ signals, how the signals are conditioned, and how to plot each quantity with the real vaft.plot API.

All figures below are shot #39915, which is also the ODS shipped inside the package (reached with vaft.omas.sample_ods(), or vaft.data.sample(39915) for the artifact itself). Most snippets on this page therefore run offline; the two that need data the packaged shot does not carry — flux-loop voltage and the toroidal phase fit — are marked where they appear.

What the IDS holds

Probes and loops are not grouped by an index list — VAFT classifies them geometrically at runtime, from position.r / position.z:

These thresholds drive the uncertainty grouping in vaft.machine_mapping.apply_magnetics_uncertainties. The plot selection= presets are coarser and do not use them: selection='inboard' is the whole high-field side, the 27 inboard probes and the 16 side probes at the inboard corners, so it draws 42 traces on shot 39915 rather than 27. To plot exactly one of the groups above, select it by position — the Inboard $B_z$ section below shows how.

When a shot is mapped from raw signals, four extra toroidal Mirnov reference probes are appended after the 64 geometry probes (indices 64–67, at $\phi = 0, 2\pi/3, \pi, 4\pi/3$). They exist only to resolve toroidal mode numbers — see Mirnov and fluctuation diagnostics.

Loading a shot

import vaft

# Packaged sample — shot 39915, no database access, used by every example below
ods = vaft.omas.sample_ods()

# Or pull a shot from the VEST database
# ods = vaft.database.load_ods(39915, source="public")

print(len(ods['magnetics.b_field_pol_probe']))   # 64
print(len(ods['magnetics.flux_loop']))           # 11

How the IDS is built

vaft.machine_mapping.magnetics is the only layer that knows about VEST field codes. It mutates the ODS in place and returns None:

from omas import ODS
from vaft.machine_mapping.magnetics import magnetics

ods = ODS()
magnetics(ods, shot=39915, tstart=0.26, tend=0.36, dt=4e-5)

Underneath, magnetics is vfit_magnetics_for_shot, which runs a dynamic pass and a static pass. You can call them separately — vfit_magnetics_static needs no shot and no database, so it is the cheap way to get probe geometry:

from vaft.machine_mapping.magnetics import (
    vfit_magnetics_static,    # names, positions, angles from the geometry YAML
    vfit_magnetics_dynamic,   # time, field, flux, ip, diamagnetic_flux, raw Mirnov voltage
    vfit_mirnov_raw_dynamic,  # raw voltages only, at the native DAQ rate
)

vfit_magnetics_static(ods)
vfit_magnetics_dynamic(ods, 39915, 0.26, 0.36, 4e-5)

Raw signals consumed, by DAQ field code:

Probe and flux-loop channels come from the packaged geometry tables (vaft/data/geometry/VEST_MagneticsGeometry_Full_ver_2302.yaml, MD.yaml, table.yaml); vest.yaml revises them per shot only where the wiring changed (equilibrium_magnetics.processing.wiring: through shot 39437 the Z = +0.06 and Z = -0.42 outboard probes read fields 170 and 225, the reverse of the 2409 layout) and records channels known to be broken (known_faults: the Z = +0.06 probe up to 36480 and for 36822-36905, and probe C4-04 at Z = -0.34 on every shot, #977), which the magnetics validation marks invalid. Both are in vest_processing_provenance(shot). Shot-number-dependent behaviour that silently changes results:

• Rogowski mutual inductance is 2.8e-4 below shot 17455 and 5.0e-4 from 17455 on.
• The $I_p$ sign is flipped for shot ≥ 20259.
• Flux-loop flux is written as value * 2π (Wb, not Wb/rad).

If a raw signal is missing, these builders write zeros rather than raising. A fully populated, entirely flat magnetics IDS is a symptom of a failed database read, not of a quiet shot.

To map a shot without a live database connection, point VAFT at an archived raw dump:

import os
os.environ["VAFT_RAW_SAMPLE_PATH"] = "vaft/data/legacy/shot_{shot}.json.gz"  # literal path or {shot} template
os.environ["VAFT_RAW_OFFLINE_ONLY"] = "1"

See Machine mapping for the full builder catalogue.

The processing chain

The physics kernels live in vaft.process and operate on plain NumPy arrays — no ODS. The whole VEST magnetics chain is tuned by one frozen dataclass:

import vaft

cfg = vaft.process.DEFAULT_VEST_MAGNETICS_PROCESSING   # a VestMagneticsProcessingConfig
cfg.timebase()                     # 25 000 samples, 0 .. 0.99996 s
cfg.window_for_shot(39915)         # (6000, 8500, 8500)  -> index_start, index_end, baseline_end
cfg.window_for_shot(44740)         # (6500, 9000, 5000)  -> the "late" window

vaft.process.vest_magnetics_time_window(39915)   # the output time base for that shot

The window is shot-dependent: shots 41446–41451 and shots ≥ 41660 use the late window (6500, 9000, 5000); everything else uses the default. Build your own config to override it:

from vaft.process.magnetics import VestMagneticsProcessingConfig
from vaft.machine_mapping.magnetics import magnetics

cfg = VestMagneticsProcessingConfig(lowpass_cutoff=5_000.0, sample_count=25_000)
magnetics(ods, 39915, 0.26, 0.36, 4e-5, processing_config=cfg)

The two per-channel kernels are deliberately not symmetric:

shot and flux_loop_number are keyword-only, and flux_loop_number is 1-based — the first flux loop is 1, not 0. Loops 9, 10 and 11 get a different baseline window.

To run the whole batch yourself (this is what vfit_magnetics_dynamic calls):

time, flux_loops, probes = vaft.process.vest_md_signals(shot, channels, loader)

The lower-level building blocks are shared with every other diagnostic: vaft.process.smooth, vaft.process.define_baseline, vaft.process.subtract_baseline (fitting_opt ∈ 'linear', 'quadratic', 'spline', 'exp'), vaft.process.signal_on_offset, vaft.process.time_derivative, and vaft.process.rogowski_coil_ip for $I_p$ from a Rogowski trace. Details in Processing.

Measurement uncertainties

EFIT constraints need *_error_upper nodes. Write them with the relative errors VEST actually uses:

import vaft

vaft.machine_mapping.apply_magnetics_uncertainties(
    ods,
    ip_relative_error=0.05,
    diamagnetic_flux_relative_error=0.03,
    bpol_inboard_relative_error=0.01,
    bpol_side_relative_error=0.10,
    bpol_outboard_relative_error=0.01,
    flux_loop_inboard_relative_error=0.10,
    flux_loop_outboard_relative_error=0.01,
)

# Or the defaults for magnetics + pf_active + tf in one call:
vaft.machine_mapping.apply_default_constraint_uncertainties(ods)

All keywords are keyword-only. Channels that fall into none of the geometric groups get no uncertainty written at all.

Plotting

Magnetics plots are reached through the vaft.omas.plot_* adapters. Each takes an ODS, an ODC, or a list of ODSs, returns (Figure, Axes), and does not call plt.show() unless you pass show=True. The shared keywords are:

An unknown option is refused and the message names the ones the plot does take, so vaft.omas.available_plots(ods, detail=True) is the fastest way to see what a given input supports — including how many channels are usable and which regions and representatives it offers. Without an input, the generated plot reference lists every plot the registry holds, by subject and view, with the IDS paths each one needs.

There is no time_slices argument on any magnetics plot — a magnetics trace is a full time series. To compare several shots, pass an ODC:

from omas import ODC

odc = ODC()
for key, shot in enumerate(vaft.data.available_samples()):   # 39915, 41524, 41672
    odc[key] = vaft.omas.load(vaft.data.sample(shot))

vaft.omas.plot_plasma_current_time(odc, yunit='kA', label='shot')

Plot names are built from the physical subject, not the IDS that stores it. The older IDS-shaped spellings (magnetics_time_ip, time_magnetics_ip) still resolve but emit a DeprecationWarning naming their replacement, and both are removed in 0.9.0. vaft.plot.migration_table() renders the current mapping from the code.

Inboard $B_z$

27 pickup coils at $r < 0.09$ m. The selection='inboard' preset would also take the 16 side probes, so pick these by position:

import vaft

ods = vaft.omas.sample_ods()          # shot 39915
probes = ods['magnetics.b_field_pol_probe']
inboard = [i for i in range(len(probes))
           if probes[i]['position.r'] < 0.09 and abs(probes[i]['position.z']) <= 0.8]

vaft.omas.plot_b_field_probe_time_field(ods, selection=inboard, layout='subplots')

# The whole high-field side -- inboard and side probes together:
vaft.omas.plot_b_field_probe_time_field(ods, selection='inboard')

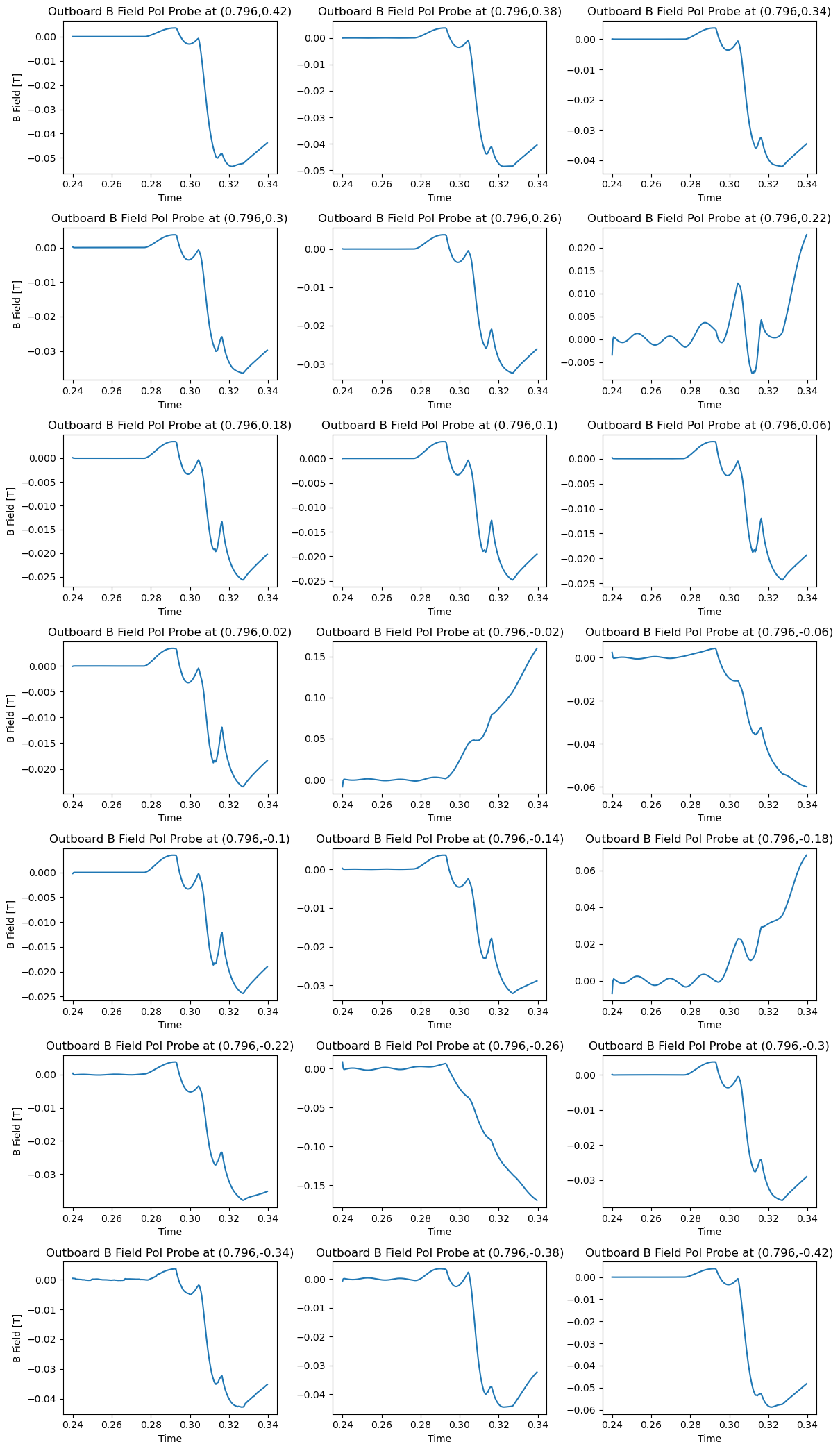

Outboard $B_z$

21 coils at $r > 0.795$ m, on a 3 × 7 grid.

vaft.omas.plot_b_field_probe_time_field(
    ods, selection='outboard', xunit='ms', yunit='T'
)

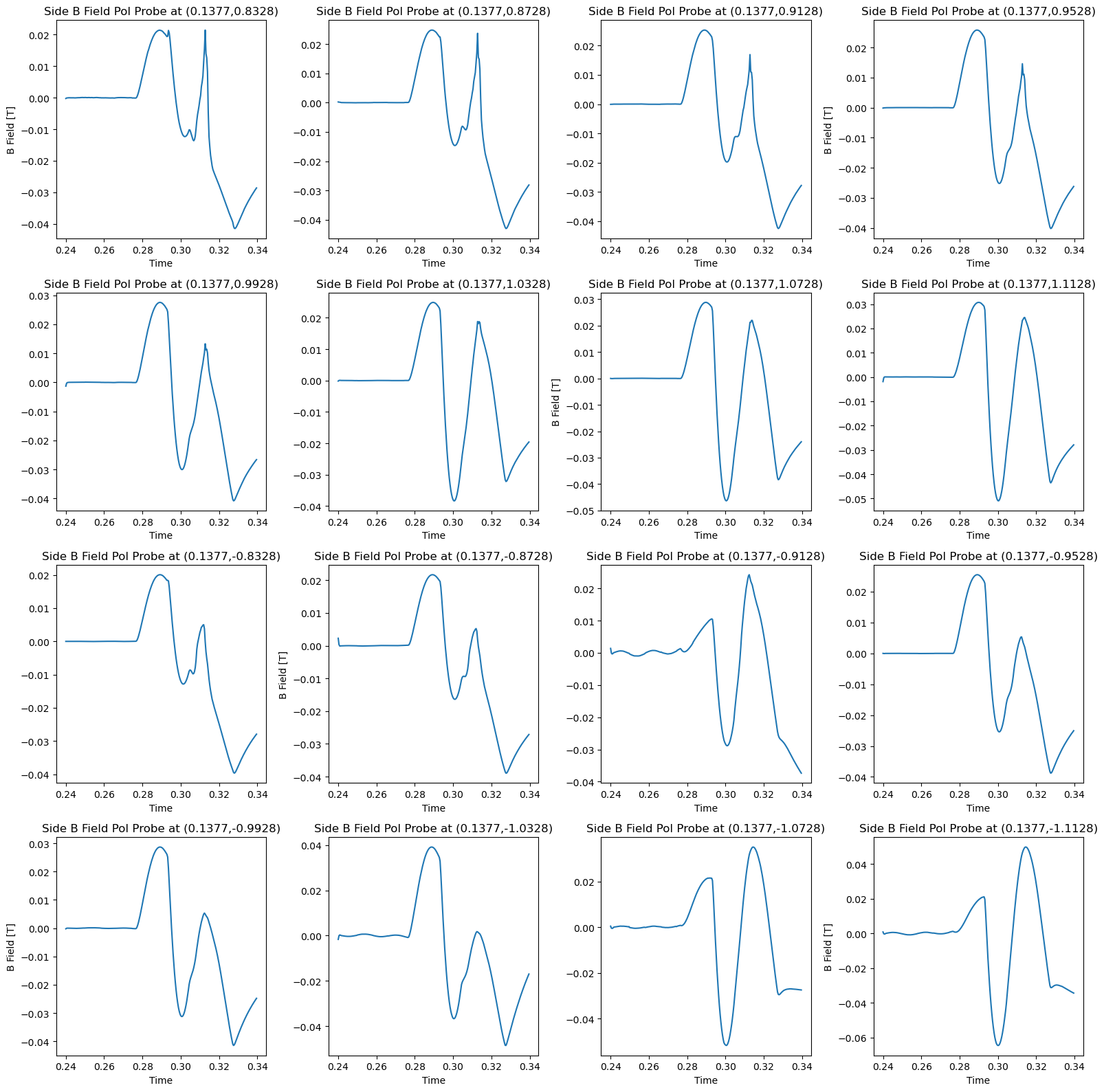

Side $B_z$

# There is no `side` preset -- `selection='inboard'` already includes these -- so select
# the side coils on their own by position:
probes = ods['magnetics.b_field_pol_probe']
side = [i for i in range(len(probes)) if abs(probes[i]['position.z']) > 0.8]   # 48..63 on 39915

vaft.omas.plot_b_field_probe_time_field(ods, selection=side)

# A single probe, or an explicit subset:
vaft.omas.plot_b_field_probe_time_field(ods, selection=[4, 39])

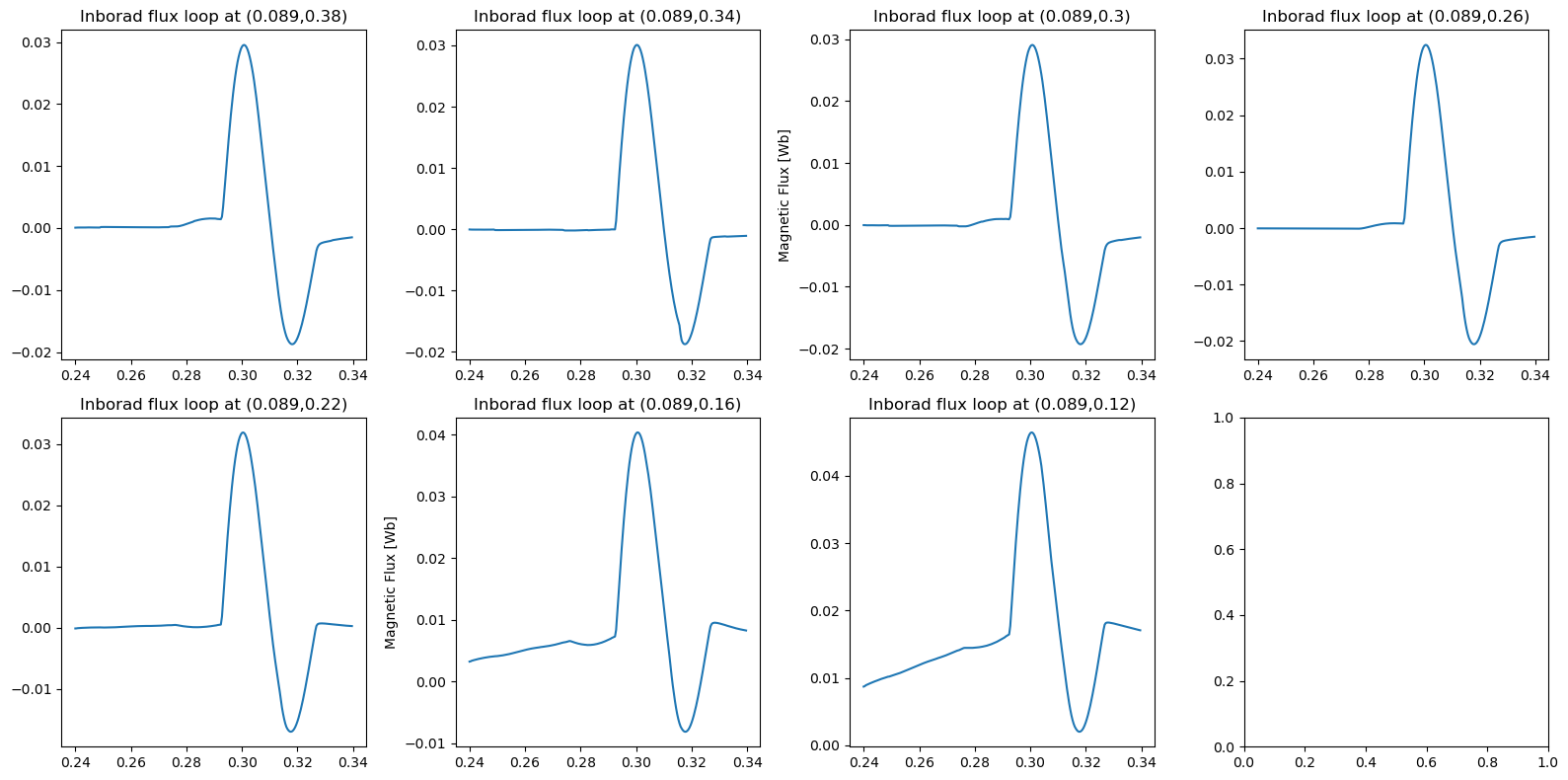

Inboard flux loop

7 loops at $r < 0.15$ m, on a 2 × 4 grid. yunit='Wb'.

vaft.omas.plot_flux_loop_time_flux(ods, selection='inboard')

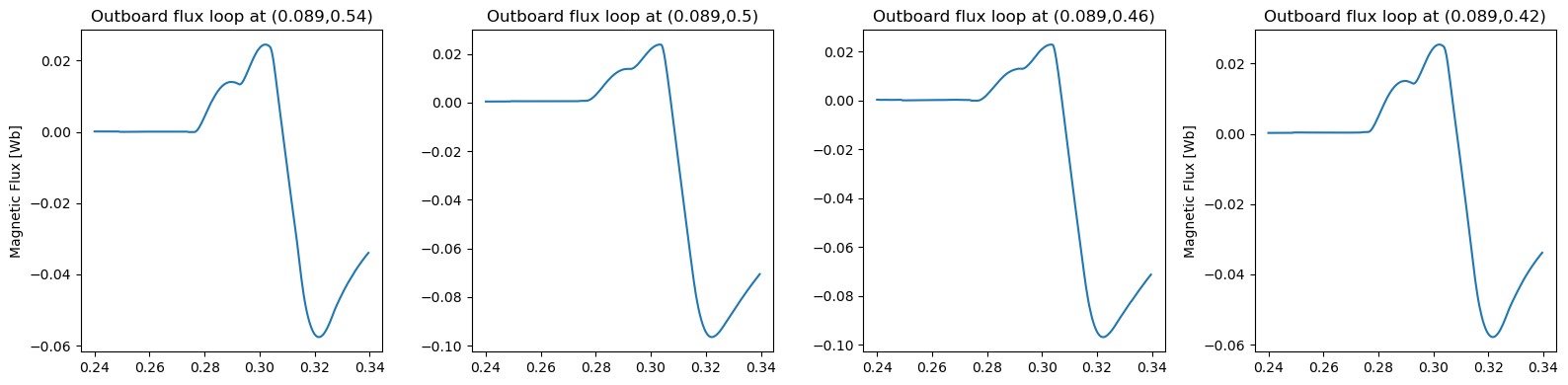

Outboard flux loop

4 loops at $r > 0.5$ m, on a 2 × 2 grid.

vaft.omas.plot_flux_loop_time_flux(ods, selection='outboard', xunit='ms')

The loop voltage $V_{loop} = -\,d\Psi/dt$ is derived from the same flux data — the inboard_mid representative loop (the inboard loop nearest the midplane, $r = 0.091$ m) is the one you want for the breakdown loop voltage. The packaged shot carries no flux_loop.<i>.voltage.data, so this one needs a database shot:

vaft.omas.plot_flux_loop_time_voltage(ods, selection='inboard_mid', yunit='V')

Plasma current

yunit accepts 'A', 'kA' and 'MA' (default 'MA').

vaft.omas.plot_plasma_current_time(ods, yunit='kA', xunit='ms')

The default window is derived from the $I_p$ on/off times, so the discharge fills the axes. Pass x_limits=None to see the full DAQ record, or x_limits=(0.28, 0.34) for an explicit window.

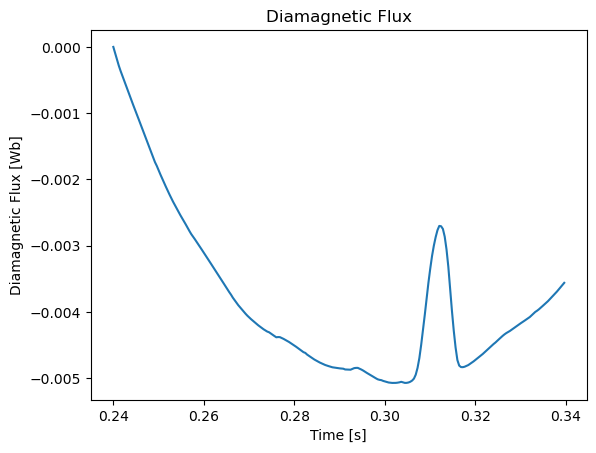

Diamagnetic flux

vaft.omas.plot_diamagnetic_flux_time(ods, yunit='Wb')

plot_equilibrium_time_diamagnetic_flux is a different plot: it overlays the raw magnetics flux with the equilibrium-measured and equilibrium-reconstructed values, which is the check you want after an equilibrium reconstruction:

vaft.omas.plot_equilibrium_time_diamagnetic_flux(ods)   # magnetics + measured + reconstructed

See Equilibrium for how the reconstructed value is computed.

3-D scenes and ParaView

Geometry3DLayers is the lightweight 3-D view model: points and polylines in machine Cartesian metres (IMAS phi counter-clockwise from above, through vaft.machine_mapping.conventions.cylindrical_to_cartesian). Each layer names its subsystem in group, a / path such as machine/pf_active/PF1/0. Surfaces, grids and fields are not layers; they belong to the scientific mesh work (#909, #1100).

The scene is extracted like any other view model; the adapters are subpackages that import vaft does not load, so import them by name:

scene = vaft.plot.extract("machine_geometry3d", ods)
scene.layers[0].group   # 'machine/...': the block path ParaView and K3D keep

from vaft.plot.pyvista import write_vtk
from vaft.plot.k3d import coil_phase_explorer

write_vtk(scene, "machine.vtm")                  # blocks follow `group`
coil_phase_explorer(ods, coil_set="MID")         # n / phase sliders

RENDER_BACKENDS stays Matplotlib and Plotly: vaft.plot.pyvista and vaft.plot.k3d are adapters of the model beside vaft.plot.plotly, imported only on use, and no data or physics API returns their objects.

Mirnov and fluctuation diagnostics

The Mirnov analysis works on magnetics.b_field_pol_probe.<i>.voltage — the raw, un-integrated coil voltage at the native 250 kHz DAQ rate. The packaged 39915 ODS carries this: 70 of its 76 probes have voltage.data, so the plots below run offline from vaft.omas.sample_ods().

import vaft

ods = vaft.omas.sample_ods()          # shot 39915

To build the same IDS from a raw DAQ dump instead — shot 44740 ships with the package — map it first:

import os
os.environ["VAFT_RAW_SAMPLE_PATH"] = "vaft/data/legacy/shot_{shot}.json.gz"
os.environ["VAFT_RAW_OFFLINE_ONLY"] = "1"

from omas import ODS
from vaft.machine_mapping.magnetics import vfit_magnetics_for_shot

ods = ODS()
vfit_magnetics_for_shot(ods, shot=44740, tstart=0.26, tend=0.34, dt=4e-5)

Every plot below returns (fig, ax) and accepts ax= and show=, so they compose into your own subplot grid.

inboard_channel = 14
outboard_channel = 37
time_range = (0.304, 0.330)

fig, ax = vaft.omas.plot_mirnov_time_voltage(
    ods,
    selection=[inboard_channel, outboard_channel],
    time_range=time_range,
    preprocess=True,          # False = raw volts; True = high-pass 2 kHz / low-pass 90 kHz, gain-corrected
)
ax.set_title("Mirnov voltage")

A spectrogram of one channel. method= selects the transform, and each method carries its own parameters — stft takes nperseg / noverlap / window / detrend, hann_fft takes window_size / time_resolution, and cwt takes frequency_range / n_frequencies:

fig, ax = vaft.omas.plot_mirnov_spectrogram(
    ods,
    selection=[inboard_channel],
    time_range=time_range,
    method="hann_fft",
    window_size=500,
)

For the power spectral density of one channel rather than its time-frequency map:

fig, ax = vaft.omas.plot_mirnov_spectrum(ods, selection=[inboard_channel], time_range=time_range)

vaft.omas.available_plots(ods, query="mirnov", detail=True) prints the methods, their parameters and the channels this input can actually use.

Toroidal mode numbers

Probes separated in toroidal angle give the mode number $n$ from the wrapped phase of each fluctuation band, fitted against toroidal angle at one instant. That is plot_mirnov_spatial_phase, whose wrapped n fit method takes frequencies, num_modes, candidate_n, channels, window_size, show_fit and preprocess.

Shot 39915 cannot supply one: it falls in the 35521-44155 gap where no toroidal array recorded, and its only fluctuation-capable probe is one channel (DAQ field 171, equilibrium probe 36), which is not two positions (issues #724, #825). The fit is shown on the repository-only fluctuation sample 45531 instead, which carries the three-angle outboard array (IMAS phi 315/225/135 deg) around its 0.294-0.308 s discharge. It loads from a Git checkout; an installed wheel raises FileNotFoundError, because only 39915 ships inside the package:

array = vaft.omas.sample_ods(45531)   # outboard Mirnov array, three toroidal positions

fig, ax = vaft.omas.plot_mirnov_spatial_phase(
    array,
    time=0.300,
    frequencies=[26e3, 52e3],         # None -> dominant peaks are picked automatically
    num_modes=2,
    candidate_n=range(0, 5),
    window_size=500,
    preprocess=True,
)

The fit needs probes that carry a toroidal angle as well as a waveform. Restricting channels= to a set that has no position.phi is refused, and the message lists the channels this input does offer — so start from the default selection and narrow it only once you know the shot’s toroidal array. Which array a shot has is recorded in the machine description; see Machine mapping.

The same kernels are callable without an ODS, on bare arrays:

import numpy as np
import vaft

time = np.asarray(ods['magnetics.b_field_pol_probe.14.voltage.time'])
data = np.asarray(ods['magnetics.b_field_pol_probe.14.voltage.data'])

clean = vaft.process.mirnov_preprocess_signal(
    data, sample_rate=250e3, high_pass_cutoff=2e3, low_pass_cutoff=90e3
)
spec = vaft.process.mirnov_spectrogram(
    time, clean, sample_rate=250e3, window_size=500, time_range=(0.304, 0.330)
)
print(spec.magnitude.shape)            # (n_frequency, n_time)

n_result = vaft.process.toroidal_mode_analysis(
    signal_a, signal_b, sample_rate=250e3, phase_geometry=np.pi / 6
)

Changing the time origin

t = 0 is the DAQ trigger by default. Every plot on this page can be re-referenced to the breakdown, the loop-voltage onset, or the $I_p$ onset — the shift is applied to the ODS itself, so plot again afterwards:

import vaft

ods = vaft.omas.sample_ods()
vaft.omas.plot_plasma_current_time(ods)

vaft.omas.change_time_convention(ods, convention='breakdown')   # 'daq' | 'vloop' | 'ip' | 'breakdown'
vaft.omas.plot_plasma_current_time(ods)

Notebook examples

• Examples — the full notebook index
• plotting_sample_using_vaft_plot_module.ipynb — the canonical vaft.plot tour
• fluctuation_diagnostics_analysis.ipynb — the Mirnov / toroidal-mode workflow above, end to end
• vest_experimental_data_list.ipynb — what exists for which shot

Related pages: Machine mapping · Processing · Plotting · Data structures · Equilibrium · API reference
