import matplotlib.pyplot as plt
import numpy as np
import vaft

ods = vaft.database.load_ods(39915, directory="public")

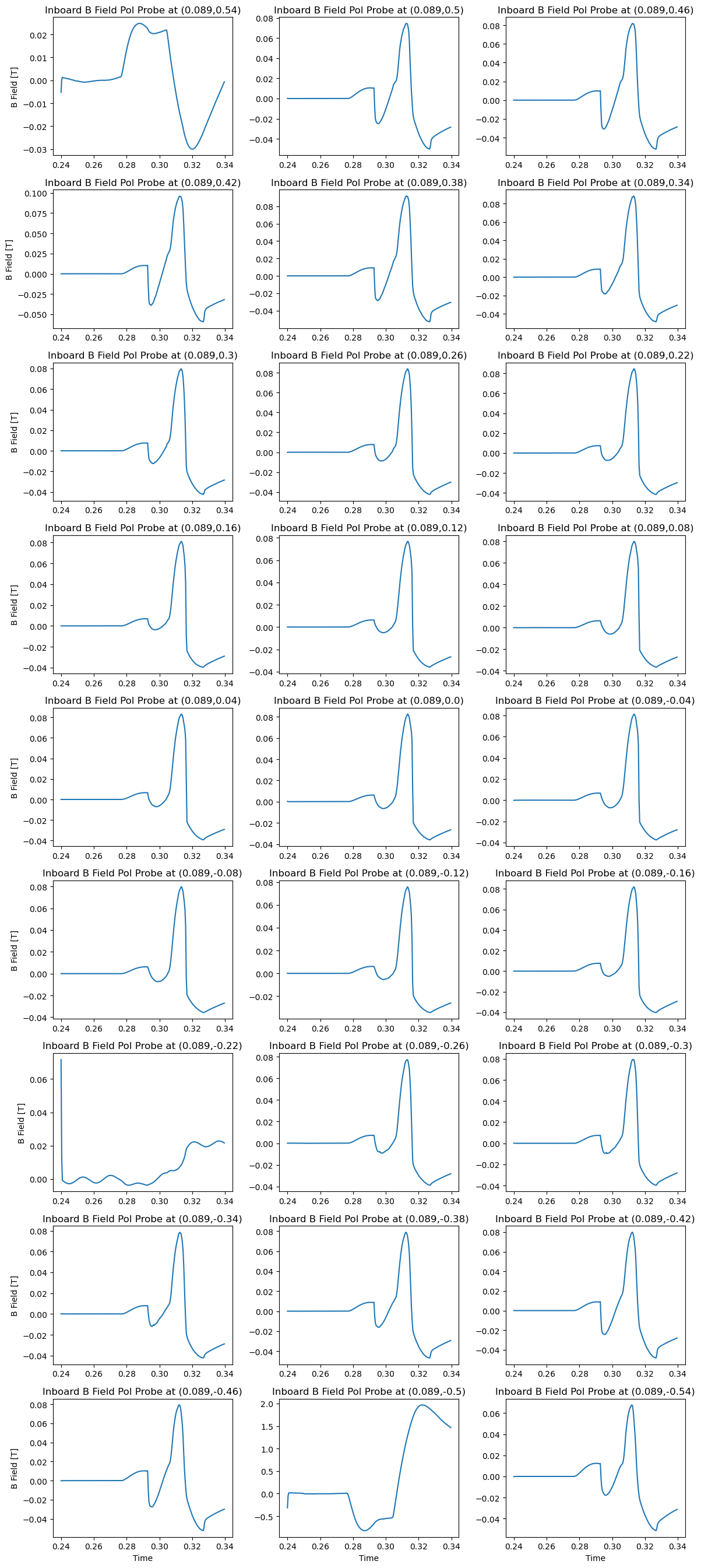

def plot_inboard_B_z(ods):  # 영역에 따라 분류
    index_inBz = np.where(ods['magnetics.b_field_pol_probe.:.position.r'] < 0.09)

    # Inboard B filed pol probe (pickup coil)
    n_rows = 9
    fig, axs = plt.subplots(n_rows, 3, figsize=(12, 3 * n_rows))

    for i, ax in zip(index_inBz[0], axs.flatten()):
        radial = ods[f'magnetics.b_field_pol_probe.{i}.position.r']
        vertical = ods[f'magnetics.b_field_pol_probe.{i}.position.z']
        position = '(' + str(radial) + ',' + str(vertical) + ')'
        ax.plot(ods['magnetics.time'], ods[f'magnetics.b_field_pol_probe.{i}.field.data'])
        ax.set_title(f'Inboard B Field Pol Probe at {position}')
        if i % 3 == 0:
            ax.set_ylabel("B Field [T]")
        if i >= 24:
            ax.set_xlabel("Time")

    plt.tight_layout()
    plt.show()

plot_inboard_B_z(ods)

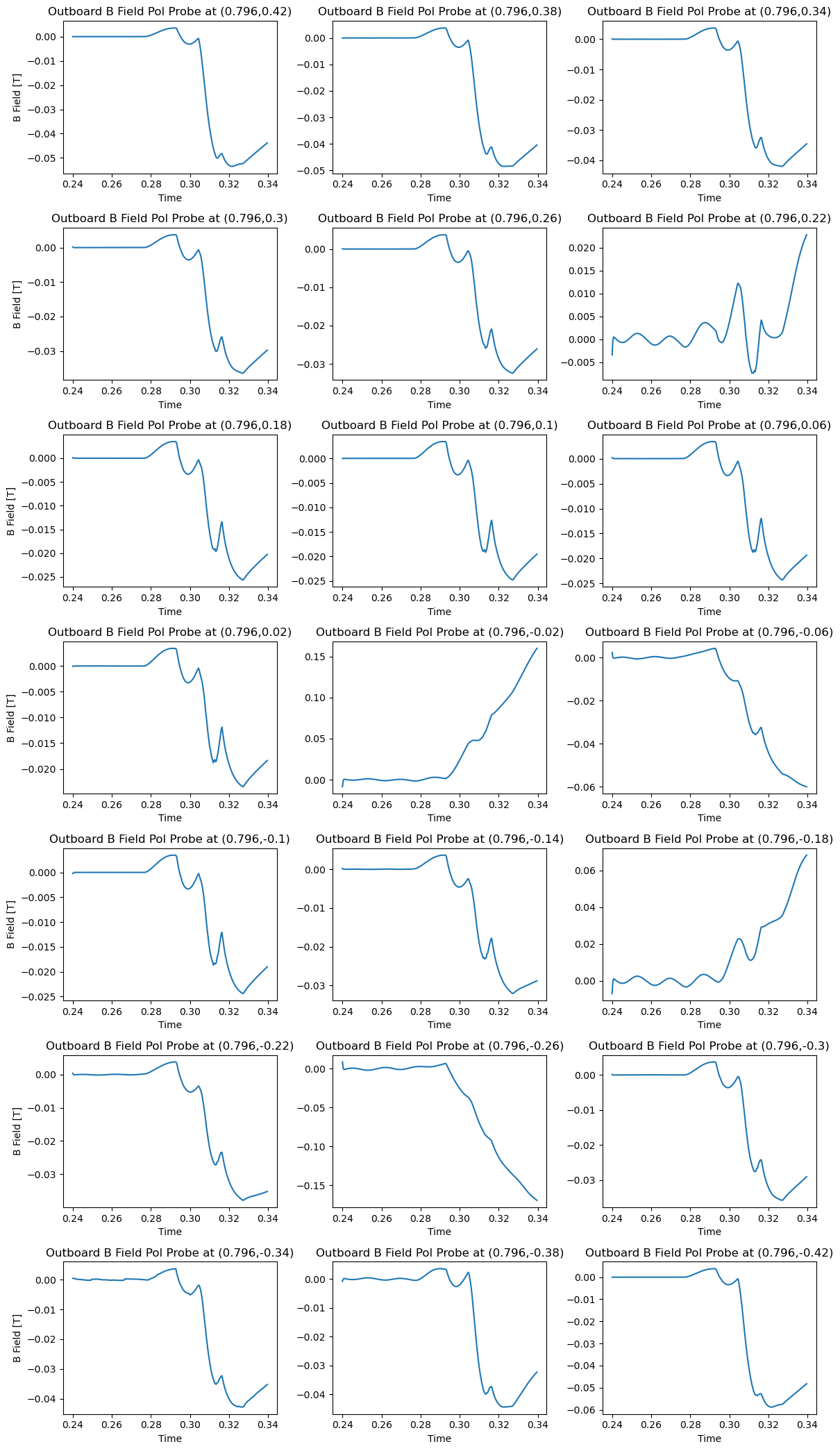

# Use the same loaded ODS object and the corresponding
# `magnetics.b_field_pol_probe` paths for outboard probes.

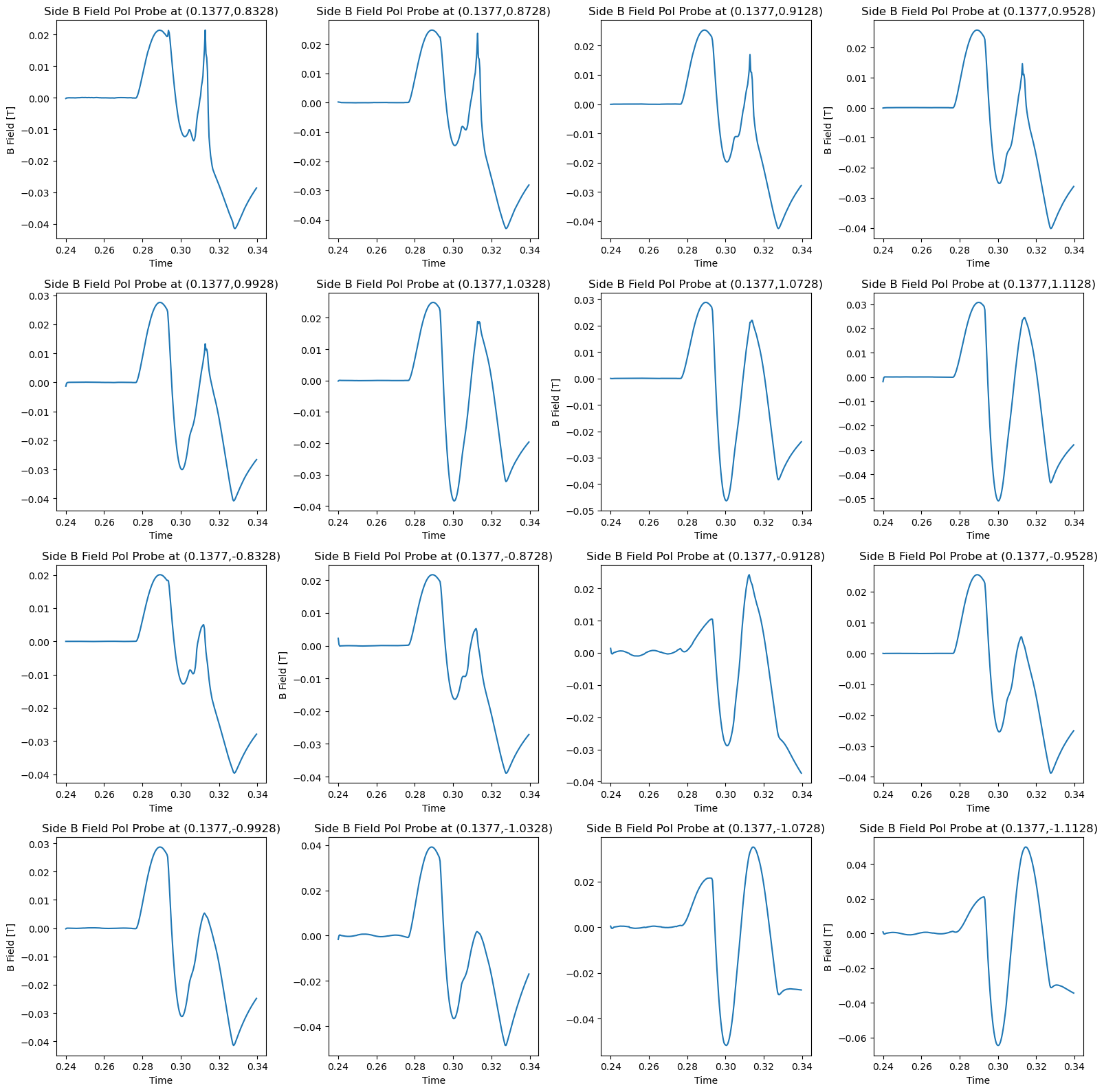

# Use the same loaded ODS object and the corresponding
# `magnetics.b_field_pol_probe` paths for side probes.

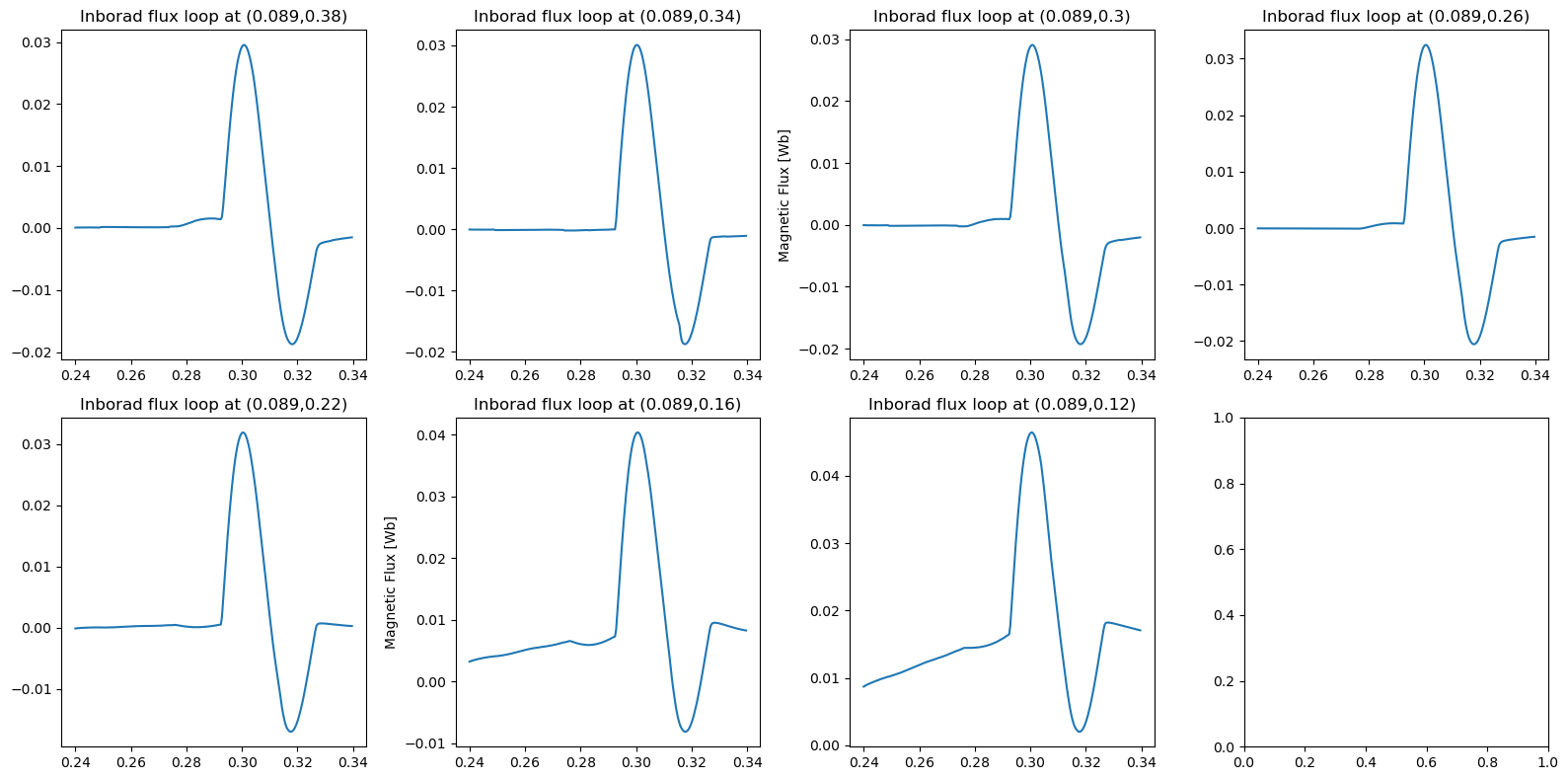

# Use the loaded ODS object and `magnetics.flux_loop`
# paths to inspect inboard flux loop signals.

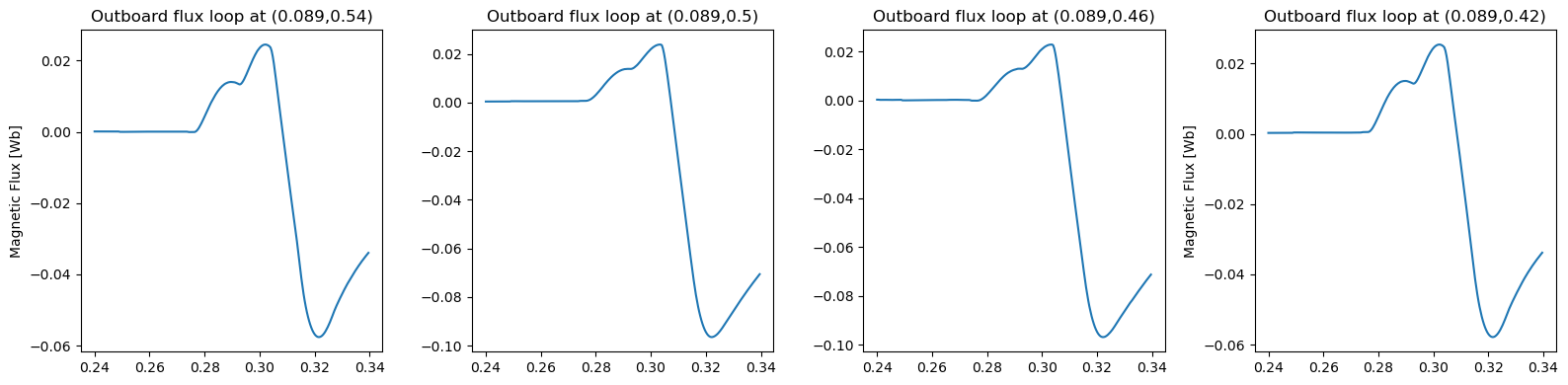

# Use the loaded ODS object and `magnetics.flux_loop`
# paths to inspect outboard flux loop signals.

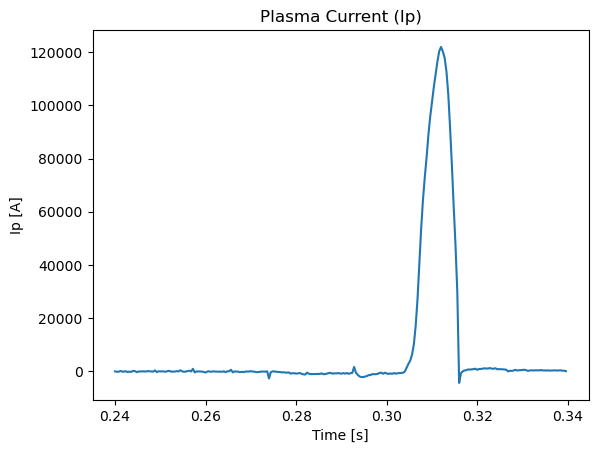

plt.figure(figsize=(8, 4))
plt.plot(ods['magnetics.time'], ods['magnetics.ip.0.data'])
plt.xlabel("Time [s]")
plt.ylabel("Plasma current [A]")
plt.tight_layout()
plt.show()

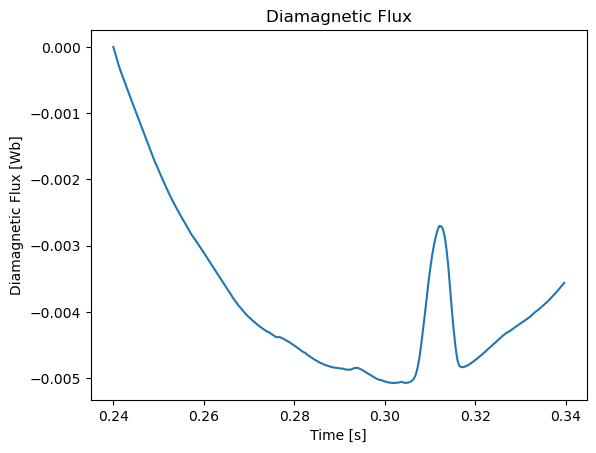

# Plot the corresponding diamagnetic flux path from `ods`
# with the same pattern used above.

import vaft

ods = vaft.omas.sample_ods()
vaft.plot.magnetics_time_ip(ods)
vaft.omas.change_time_convention(ods, convention='breakdown')
vaft.plot.magnetics_time_ip(ods)
